How to Choose the Best Roll Size for Residential and Commercial Window Film Jobs

The best roll width is the one that produces the most practical material plan for the measured job. It is not automatically the widest roll, the narrowest roll that fits the largest pane, or the option with the lowest linear-foot result.

Compare the full pane list against the widths available for the selected film. Then review how each option changes pane fit, orientation, required pulls, linear feet, cut-layout waste, purchase length, handling, and usable remainder.

The planning method is the same for residential window tint, commercial window film, architectural film, and other flat-glass work. The pane patterns may differ, but the material still comes from individual pieces arranged on a roll.

The Quick Answer

Use this sequence when choosing a roll size:

1. Record the width, height, and quantity of every pane.
2. Separate panes that will receive different films.
3. Confirm the current roll widths available for each selected product.
4. Apply any cutting allowance and orientation restrictions.
5. Test the full pane list against each viable roll width.
6. Compare fit, required pulls, linear feet, cut-layout waste, and the Visual Cut Diagram.
7. Check purchase length, current cost, handling, and usable remainder.
8. Select the option that fits the job and the shop's production process.

For a small job with a few repeated panes, an experienced installer may be able to sketch the comparison. As the number of sizes, quantities, films, and available rolls grows, a cut planner makes the alternatives easier to compare and verify.

Start With the Film and the Full Pane List

The proposed film should be established before roll widths are compared. Confirm that the product is available, that the supplier can provide it when needed, and that the film has gone through the appropriate technical review for the actual glass and site conditions.

Film-to-glass compatibility, thermal stress, glazing-system limitations, and warranty requirements remain with current manufacturer and IWFA technical guidance. A material plan evaluates how the selected film fits the measured job. It does not approve the film for the glass.

The largest pane can eliminate widths that will not cover the glass as planned. It cannot choose the best roll for the rest of the project.

The pane list should keep these details together:

How to Turn Window Measurements Into a Material Plan covers the larger path from the pane list through ordering, usable remainder, estimating, and production.

What 36-, 48-, 60-, and 72-Inch Rolls Can Change

Architectural film is commonly encountered in 36-, 48-, 60-, and 72-inch widths, but availability varies by manufacturer, product line, region, and supplier. Compare only the widths that can actually be sourced for the selected film.

The table is a starting point. The measured pieces decide whether a width earns its place in the material plan.

When a Wider Roll Actually Saves Material

A wider roll helps when the extra width changes the layout in a useful way. It may allow more pieces across, reduce required pulls, avoid a seam, support a practical rotation, or create a remainder the shop can realistically use.

The next two examples hold orientation fixed: the first dimension runs across the roll and rotation is not allowed. Dimensions represent cut pieces before any additional allowance. They illustrate that constraint, not the best layout with rotation available.

Consider ten pieces measuring 34 by 60 inches.

On a 60-inch roll, one 34-inch piece fits across. Each of the ten panes requires its own 60-inch pull.

On a 72-inch roll, two 34-inch pieces fit across. Ten panes require five pulls.

The wider roll changes the layout substantially. It reduces the required pulls and cuts the used roll length in half before any additional allowance.

That result gives the 72-inch roll a clear material advantage. The shop should still check price, availability, purchase length, and handling before ordering.

When the Extra Width Does Not Help

With the same fixed-orientation assumption, consider eight pieces measuring 40 by 60 inches.

Only one 40-inch piece fits across either a 60- or 72-inch roll. Both options require eight 60-inch pulls.

The wider roll does not reduce the roll length. It creates a wider unused strip beside each piece.

The 72-inch roll may still be required for other panes on the job, or its offcut may be useful. For these eight panes alone, the layout has not shown a material advantage.

If rotation is permitted, compare rotated layouts too. For these exact cut dimensions before extra allowance, turning the 60-inch side across a 60-inch roll changes the required length. The fixed-orientation totals above are not universal order quantities.

This is the basic test: the wider roll should be chosen because the measured job uses its width, not because wider sounds safer.

Residential and Commercial Jobs Use the Same Logic

Residential projects often contain a mixture of windows, patio doors, sidelights, transoms, and room-specific film choices. One large door may eliminate the narrowest rolls, but the remaining household windows still determine whether 48, 60, or 72 inches produces the stronger plan.

Commercial projects may contain high quantities of repeated storefront panes, doors, office glass, and several elevations. A few inches of unused width beside one pull can become a meaningful amount of material when the same fit repeats twenty or fifty times.

A commercial project using two films requires two material decisions. Solar-control film on exterior glass and decorative film in an office area should not be combined into one roll comparison simply because they belong to the same customer project.

Example: One 19-Window Job Across Four Widths

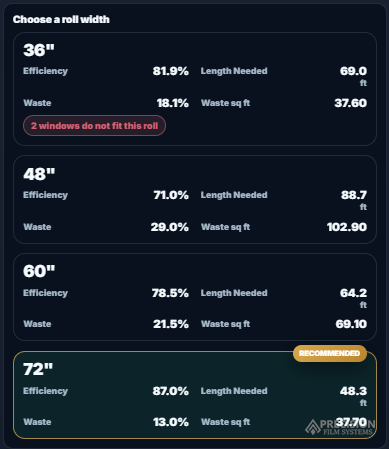

The following comparison uses one 19-window job containing 251.78 square feet of measured glass. The same pane list is tested against 36-, 48-, 60-, and 72-inch rolls.

For this pane list, the 72-inch roll covers every window, uses the fewest linear feet, and produces the lowest cut-layout waste among the viable single-roll options.

That finding applies to this job. Another pane list may make the 60-inch roll stronger or show that using more than one width is the better plan.

Keep Roll Width Attached to Linear Feet

Linear feet cannot be compared responsibly without the roll width.

Thirty linear feet of 72-inch film contains twice the material area of 30 linear feet of 36-inch film. The length is the same, but the amount of film, purchase cost, handling, and possible remainder are different.

A useful comparison keeps these numbers visible together:

Why Linear Feet Matters After Square Footage Is Measured explains why the length number only becomes useful when it remains attached to a width and a pane layout.

Purchase Length Can Change the Decision

The length used by the cut layout and the length the shop can buy are not always the same.

Suppose one option uses 36 feet and another uses 30 feet. If the supplier sells the film in 25-foot increments, both options require a 50-foot purchase. The six-foot difference does not settle the order.

The shop still needs to compare:

• cost of the two roll widths
• cut-layout waste
• full-width remainder
• realistic future use of the remainder
• current stock
• handling and production method

The reverse can happen near an order threshold. A small difference in required length may keep one layout inside a 50-foot purchase while another requires the next increment. Purchase rules can turn a modest layout difference into a larger cost difference.

Separate Waste, Offcuts, and Remainder

Different forms of leftover material deserve different treatment.

A wider roll can create a useful strip for sidelights or transoms. It can also create a wide strip that never matches another job. A long roll tail may have value if the shop records the film, width, remaining length, condition, and storage location.

How Film Waste Affects Flat Glass Quotes explains how these material results affect the price supporting a customer estimate.

Orientation Must Work Outside the Diagram

Rotation can produce a shorter layout, but the option only counts when the film and installation allow it.

Directional films, patterns, visual consistency, manufacturer requirements, cutting equipment, and the shop's installation method may restrict orientation. Apply those restrictions before comparing results.

A layout that depends on an unusable orientation is not a viable material option.

One Width Does Not Have to Carry the Entire Job

Some projects plan better across more than one roll width.

A few large panes may require a wide roll while the rest of the job fits a narrower roll more effectively. Material already in the shop may cover one group while a new roll handles another.

Compare the whole purchase and production decision. A multi-roll plan can use less film or make better use of inventory, but it can also add handling, setup, and tracking. The benefit should be visible in the job plan.

Check the Practical Side Before Ordering

Before choosing a roll, confirm:

• the film is available in that width
• every required pane fits as planned
• orientation restrictions are applied
• the roll is practical to transport and handle
• the shop's cutting equipment can support the plan
• supplier order lengths and current prices are known
• waste and remainder are treated separately
• different films have separate plans
• the selected film has completed the necessary technical review

The strongest mathematical layout can still be the wrong purchase when the roll is unavailable, difficult to handle, or incompatible with the way the job must be produced.

Where Precision Film Systems Fits

Precision Film Systems compares the same measured pane list across the standard widths available for the selected film. It shows fit, linear feet, efficiency, waste, and a Visual Cut Diagram for the viable options.

Single-Roll planning evaluates a selected width. Multi-Roll can plan the active Scope across at least two selected standard widths without modeling finite stock lengths. Film on Hand is the separate workflow for individually entered physical rolls with finite usable lengths.

The comparison does not replace the shop's judgment. Product availability, cost, purchase increments, handling, compatibility, and remainder value remain part of the final decision.

This article is the canonical roll-size guide within the Getting Into Flat Glass material-planning stage. The automotive roll-width guide gives shops entering flat glass a shorter introduction to the same decision.
